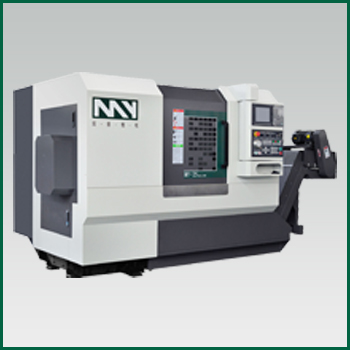

CNC lathe with linear guideway, triangular saddle

MY0 Series

 The machine features

MY20, MY25, MY35, MY45

Structural features: one-piece casting structure, linear guideway, triangular saddle, horizontal servo turret.
Machine advantage: rapid traverse speed, better machining accuracy, smooth chip removal, better rigidity, high reliability, good versatility, which create excellent cost performance for this series.

Be fit for machining all kinds of axle/shaft and plate/disk within machine's technical specification.

项目 Items
MY20
MY25
MY35
MY45
机床最大回转直径 Max Swing Diameter
mm
ø420
ø500
ø650
ø800
轴类最大车削直径 Max Diameter of Axle/Shaft
mm
ø200
ø250
ø350
ø450
盘类最大车削直径 Max Diameter of Plate/Disk
mm
ø300/260
ø320
ø450
ø600
棒料通过直径 Working Capacity of Bars
mm
ø49
ø49
ø69
ø85
最大车削长度 Max Cutting Length
mm
300
450/700
600/1000
700/1200
机床定位精度 Positioning Accuracy
mm
0.01/100
0.01/100
0.01/100
0.01/100
机床重复定位精度 Repositioning Accuracy
mm
X: 0.0035
X: 0.0035
X: 0.0035
X: 0.0035
Z: 0.005
Z: 0.005
Z: 0.005
Z: 0.005
X轴最大行程 X Axis Travel
mm
200
260
320
400
Z轴最大行程 Z Axis Travel
mm
400
500/760
650/1080
800/1300
主轴头尺寸 Spindle Size
mm
ø170 A2-6
ø170 A2-6
ø220 A2-8
ø380
标配卡盘型号 Standard Chuck Model
inch
8
8
12
15

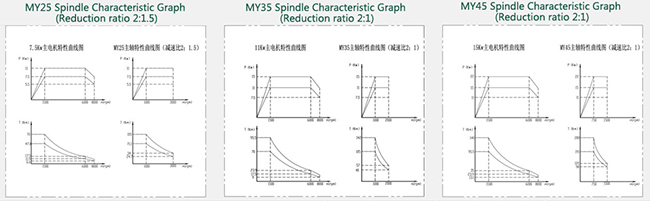

主电机额定功率 Spindle Motor Power
Kw
5.5/7.5
7.5/11
11/15
18/22
主轴转数范围 Spindle Speed Range
r/min
3500
3000
2000
1400
刀塔种类 Turret Type
液压伺服 Hydraulic servo
刀塔中心高 Turret Height
mm
100
125
125
160
刀塔刀位数 Capacity of Tool Turret
8/12
8/12
8/12
8/12
外径车削刀杆尺寸 Size of OD Turning Tool Bar
mm
25/20
25
25
32
内径车削刀杆尺寸 Size of Boring Bar
mm
ø32
ø32
ø40
ø50
相邻刀位转刀时间
Adjacent Tool Transferring Time
S
0.5
0.5
0.6
1
最大快移速度 Max Moving Speed
m/min
20
20
20
20
尾座体行程 Tailstock Travel
mm
170
300/500
450/800
600/1000
尾座套筒行程 Tailstock Sleeve Travel
mm
90
90
100
120
尾座顶尖型号 Tailstock Center
Morse
3#
4#
5#
5#
冷却水泵功率 Cooling Pump Power
Kw
0.55
0.55
0.55
0.55
冷却水泵流量 Cooling Pump Flow Rate
L/min
80
80
80
80
数控系统 CNC System
三菱 Mitsubishi E70/ 发那科 Fanuc/ 凯恩帝 KND
主轴驱动伺服单元 Spindle Driver Server Unit
Kw
5.5
7.5
11
18
总电源容量(连续加工时) Total Power Capacity
Kw
10
10
15
22
机床长度 Length
mm
1660
2200/2700
2400/3000
2800/3400
机床宽度 Width
mm
1510
1750
1850
2000
机床高度 Height
mm
1600
1800
1800
1850
机床总重量 Total Weight
T
2.5
3.5/4.5
4.2/5.8
6/7.5

本公司保留随时修改的权利,订货时以技术协议为准。
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order's technology agreement.
