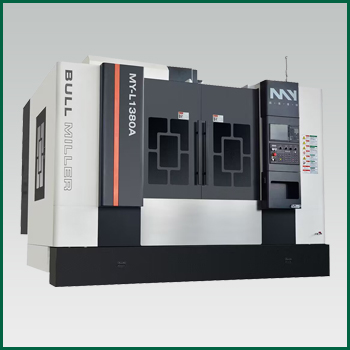

MYL850 MYL1060 MYL1270 Series
 The machine features
MYL850, MYL1060, MYL1270
Structural features: structure with good rigidity, linear guideway, rotating-disk tool magazine, servo spindle.
Machine advantage: rapid traverse speed, high machining accuracy, good rigidity, smooth chip removal, high reliability, good versatility.
Be fit for machining all kinds of parts within machine’s technical specification.
| 项目 Items |
|
MY-L850 |
MY-L1060 |
MY-L1270 |
| 主轴部分Spindle |
主轴锥孔(型号, 安装尺寸)
Spindle Taper (Model, Diameter) |
|
BT40/ø150 |
BT40/ø150 |
BT50/ø150 |
主轴最高转数
Max speed of Spindle |
rpm |
8000 |
8000 |
8000 |
| 主电机额定功率 Rated Power of Main Motor |
kw |
7.5 |
7.5/11 |
11/15 |
| 主轴端面至工作台面距离 Spindle Nose to Table |
mm |
110---610 |
170---670 |
180---680 |
| 主轴中心至立柱导轨面距离 Spindle center to column |
mm |
560 |
600 |
785 |
| 工作台Worktable |
工作台尺寸 Size |
mm |
500*1000 |
600*1300 |
700*1360 |
| 工作台承重 Load-Bearing |
kg |
450 |
600 |
1000 |
| T型槽 T Groove |
mm |
18（5 条/lines） |
T型槽间距
Interval of T Groove |
mm |
90 |
100 |
122 |
| 进给伺服轴Feeding Servo Axis |
X/Y/Z轴行程
X/Y/Z Axis Travel |
mm |
800/500/500 |
100/600/600 |
1200/700/600 |
X/Y/Z轴滚珠丝杠
X/Y/Z Axis Ball Screw |
|
4012 |
4012 |
5010 |
X/Y/Z 轴电机连接方式
Axis Motor Connection |
|
联轴器直连 Diretly Coupling |
X/Y/Z轴电机扭矩
X/Y/Z Axis Motor Torque |
nm |
10/12/12 |
12/16/16 |
16/16/16 |
X/Y快移速度
X/Y Moving Speed |
m/min |
24 |
24 |
24 |
Z轴最大快移速度
Max Speed of Z Axis |
m/min |
12 |
12 |
12 |
最大切削速度
Max Cutting Speed |
m/min |
10 |
10 |
10 |
刀库部分
Tool Magazine |
刀库形式
Tool Magazine Type |
|
圆盘式 Rotating-disk Type |
刀库容量
Tool Magazine Capacity |
|
24 |
24 |
24 |
| 刀柄尺寸 Tool Shank Size |
|
BT40 |
BT40 |
BT50 |
| 最大直径 Max Diameter |
mm |
ø78 |
ø78 |
ø78 |
| 最大长度 Max Length |
mm |
300 |
300 |
300 |
| 精度Accuracy |
定位精度
Positioning Accuracy |
mm |
0.01/300 |
0.01/300 |
0.01/300 |
重复定位精度
Repositioning Accuracy |
mm |
0.0035 |
0.0035 |
0.0035 |
| 数控系统 CNC System |
|
三菱 Mitsubishi M70/ 发那科 Fanuc/ 凯恩帝 KND |
| 外形尺寸Overall Dimensions |
机床约重 Weight |
T |
5.5 |
7.5 |
9.0 |
| 机床外尺寸(长/宽/高) Dimension (L/W/H) |
mm |
2600*2500*2650 |
3000*2750*2800 |
3400*2950*2950 |
本公司保留随时修改的权利，订货时以技术协议为准。
Minyo reserves the right to change above specifications due to technical innovation, which should be subject to the final order’s technology agreement.
1、本机采用高精度进口丝杠和丝杠轴承，极大的提高了进给轴的轴向刚性、精度和高冲击性。
2、本机的主要功能部件，如主轴单元、滚动丝杠、线性导轨、打刀缸、润滑装置、刀库、联轴器、丝杠轴承等均为名优产品，可靠耐用。
3、机床装配工艺精细，运动部分经激光干涉仪和球杆仪补正精度，实现了加工精度稳定性。
1. This machine adopts high-precision screw rod and screw bearing, which greatly enhance the axial rigidity, accuracy and high impact of the feed shaft.
2. All the main functioning parts of this machine are famous brand high-quality products, including spindle unit, rolling screw, linear guide, unclamping cylinder, lubrication device, tool magazine, coupling and screw bearing, etc.
3. The machine is finely assembled. All the moving parts are corrected and compensated by the laser interferometer and ball-bar, which implements the stability of working accuracy.
|
